Precision Power Savings

nRF54L15 Wireless SoC and nPM2100 PMIC for Extended Battery Life

With an ultra-low power multiprotocol 2.4 GHz radio and MCU the nRF54L15 is the largest memory option of the Nordic nRF54L portfolio, featuring multiprotocol support (Bluetooth®  6.0, Thread, Zigbee). It features an 128 MHz Arm Cortex-M33 processor and comprehensive peripheral set with 1.5 MB NVM + 256 KB RAM.

The nPM2100 is the industry’s first ultra-low power PMIC purpose-built for primary cell battery devices. Pairing nRF54L solutions with the nPM2100 enables power saving efficiencies ideally suited for medical wearables, asset tracking, smart home, remote and peripheral controls.

Part Number
Description
Data Sheet
Availability
Pricing
Buy
nRF54L15-DKMultiprotocol Development Tools nRF54L15 Development Kit
 In-Stock
1: $39.00
nRF54L15-CAAA-R7RF System on a Chip - SoC Ultra-low power Bluetooth Multiprotocol 5.4 SoC System-on-Chip
 In-Stock
1: $3.37
nRF54L15-CAAA-RRF System on a Chip - SoC Ultra-low power Bluetooth Multiprotocol 5.4 SoC System-on-Chip
 In-Stock
1: $3.37
nRF54L15-QFAA-RRF System on a Chip - SoC Ultra-low power Bluetooth Multiprotocol 5.4 SoC System-on-Chip
 In-Stock
1: $4.60
nPM2100-EKPower Management IC Development Tools Evaluation board for nPM2100 PMIC for primary-cell batteries
 In-Stock
1: $50.55
nPM2100-CAAA-R7Battery Management PMIC for primary-cell batteries. Boost 1.8 to 3.3V, 150mA. LDO 0.8 to 3V, 50 mA
 In-Stock
1: $1.87

Overview

With its ultra-low-power multiprotocol 2.4 GHz radio and MCU, the Nordic nRF54L15 is ideal for wireless device designs. With 1.5 MB of non-volatile memory (NVM) and 256 KB of RAM, the nRF54L15 wireless SoC offers the highest memory capacity within the Nordic portfolio, making it ideally suited for advanced, memory-intensive designs. Beyond its expanded memory, the nRF54L15 delivers best-in-class power savings, multiprotocol capabilities (including Bluetooth® 6.0, Thread, and Zigbee), and cost-effective performance for demanding applications.

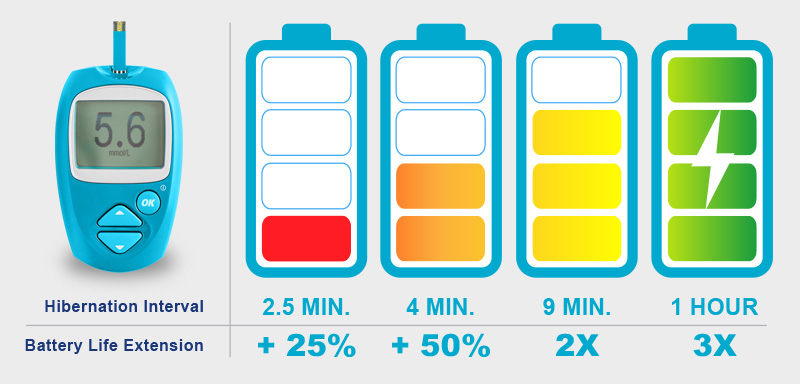

The nPM2100 is the industry’s first PMIC purpose-built for primary cell battery devices. This compact all-in-one solution features an ultra-efficient boost converter and comprehensive suite of advanced power-saving capabilities like 35nA Ship Mode for convenient shipping and storage. For designs with extended idle times, the combination of nRF54L SoCs with the nPM2100 PMIC can achieve up to 3x longer battery life through hibernation mode.

Applications

Medical Wearables

Asset Tracking

Smart Home

Remote & Peripheral Controls

Key Specifications and Benefits

nRF54L15 Wireless SoC

  • 128 MHz Arm® Cortex®-M33 processor
  • 1524 KB NVM and 256 KB RAM
  • Multiprotocol 2.4 GHz radio supporting
  • Bluetooth Low Energy, 802.15.4-2020, and
  • 2.4 GHz proprietary modes (up to 4 Mbps)
  • Comprehensive set of peripherals including new Global RTC available in
  • System OFF, 14-bit ADC, and high-speed serial interfaces
  • 128 MHz RISC-V coprocessor
  • Advanced security including TrustZone® isolation, tamper detection, and cryptographic engine side-channel leakage protection
  • Ultra-compact WLCSP (2.4x2.2 mm) and QFN (6.0x6.0 mm) packages

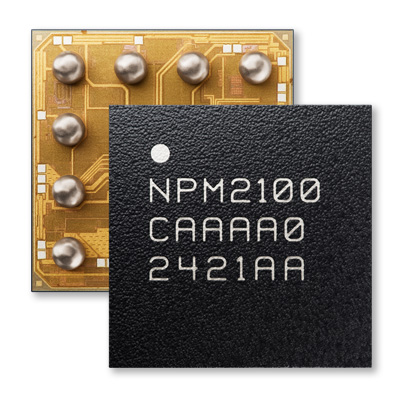

nPM2100 PMIC

  • Ultra-efficient boost regulator
    • Up to 95%
    • 1.8 V to 3.3 V output
    • 150 mA max
  • LDO/Load switch supplied by the boost regulator
    • 0.8 V to 3.0 V in LDO mode
    • 50 mA max
  • 35 nA Ship Mode
  • 175 nA Hibernate mode with wakeup timer
  • Fuel gauge for primary cell batteries
  • 0.7 V to 3.4 V supply voltage
  • Multiple package options
    • 1.9x1.9 mm WLCSP
    • 4.0x4.0 mm QFN16

Nordic Semiconductor’s nPM2100 Power Management IC Extends Battery Life of Primary Cell-Powered Bluetooth Low Energy Products

The nPM2100 PMIC incorporates an ultra-efficient boost regulator and a wide range of energy-saving features to significantly extend operating time in non-rechargeable battery applications.

Read Blog >

Nordic Semiconductor Enables All Developers to Start Designing With the nPM2100 PMIC for Non-Rechargeable Batteries

nPM2100 evaluation kit, software, and documentation are now available to developers.

Read Blog >

Panasonic Modules Built on Nordic’s nRF54L15 SoC Promise High Performance and Efficiency, and Low Power Consumption for Advanced IoT Applications

Panasonic Industry Europe’s PAN B511-1C module integrates nRF54L15 SoC to deliver enhanced functionality for Matter smart home solutions and more.

Read Blog >

Wireless Modules Powered by Nordic nRF54L Series Promise Next Generation Performance for Advanced IoT Applications

MinewSemi’s ME54BS01 module integrates nRF54L15 SoC to provide developers unrivalled performance and security in wireless connectivity applications.

Read Blog >
