- Silvertel Advanced, Cost-Efficient PoE+ Solutions
Advanced, Cost-Efficient PoE+ Solutions
Ag53000 Series | PoE+ Power Modules | Compact PoE+ Power | Embedded PoE+ | 12V PoE+ Power Module | 24V PoE+ Power Module | High-Efficiency DC/DC Converter | Industrial Control Solutions | Building Automation Solutions
Image | Part Number | Description | Data Sheet | Availability | Pricing | Buy |
|---|---|---|---|---|---|---|
 | Ag53012 | Power over Ethernet - PoE - Open Frame Modules IEEE802.3at 30W 12V Single-in-Line (SIL) PoE PD Module |  | In-Stock | 1:$11.00 | |
| Ag53024 | Power over Ethernet - PoE - Open Frame Modules IEEE802.3at 30W 24V Single-in-Line (SIL) PoE PD Module | | In-Stock | 1:$11.00 |

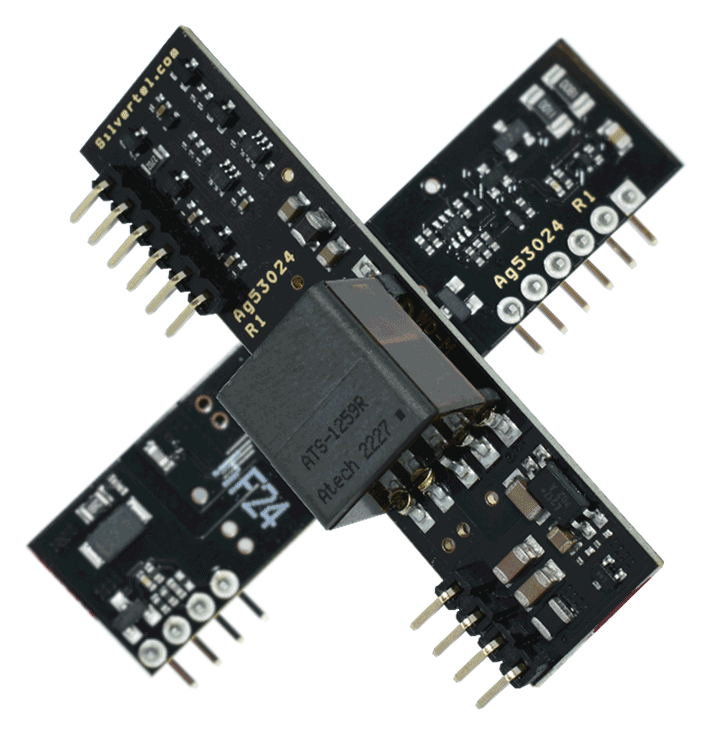

Overview: The Ag53000 Series from Silvertel is a line of cost-efficient, standards-compliant PoE+ power modules designed to simplify power delivery in embedded systems. Featuring ease of use, seamless implementation, and rapid time to market, Ag53000 solutions deliver up to 30W output in a compact Single-In-Line (SIL) package. The Ag53000 Series enables reliable power and data delivery over a single Ethernet connection, reducing design complexity and installation overhead.
Available in 12V and 24V output options, these modules integrate high-efficiency DC/DC conversion (>90%), built-in protection features, and 1500 VDC isolation to support commercial and industrial requirements. With extended temperature support up to –40°C to +85°C, the Ag53000 Series is well suited for building automation and industrial control applications.
Building Automation and Industrial Control Applications
IP Video Telephones
WiMAX Access Points
PTZ Cameras

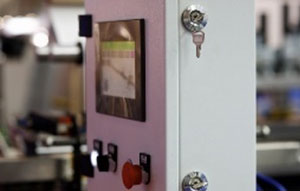

Remote Computer Terminals
IIoT/IoT
SMART Connected Systems
Key Specifications and Benefits
- 24W, Class 4 PD, 30W peak output power
- IEEE802.3at, IEEE802.3af compliant
- 90% efficient DC/DC converter
- 12V and 24V output variants available
- Low output ripple & noise
- Overload, short-circuit and thermal protection
- Adjustable output voltage
- Industrial temperature range
- Minimal external components required
- Single In-Line (SIL) package 57.3mm(L) x 14mm(H)
- 1500Vdc isolation (input to output)
- Silvertel technical “design-in” assistance
- Designed and Manufactured in the UK
- Pin for Pin compatible and complement Silvertel PoE+ solutions, including Ag5300, Ag5400, Ag97000, and Ag9700 series
