The New TMCM-1111-StepRocker-Servo from Trinamic Motion Control
About Symmetry Electronics
Established in 1998, Symmetry Electronics, a Division of Braemac, is a global distributor of electronic components and systems. Combining premier components and comprehensive value-added services with an expert in-house engineering team, Symmetry supports engineers in the design, development, and deployment of a broad range of connected technologies.
Exponential Technology Group Member
Acquired by Berkshire Hathaway company TTI, Inc. in 2017, Symmetry Electronics is a proud Exponential Technology Group (XTG) member. A collection of specialty semiconductor distributors and engineering design firms, XTG stands alongside industry leaders TTI Inc., Mouser Electronics, and Sager Electronics. Together, we provide a united global supply chain solution with the shared mission of simplifying engineering, offering affordable technologies, and assisting engineers in accelerating time to market. For more information about XTG, visit www.xponentialgroup.com.
Image Caption

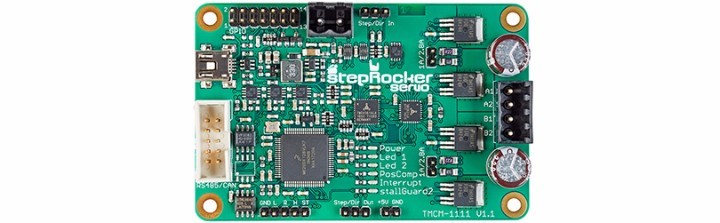

Following to the success of the TMCM-1110-StepRocker single axis board, the TMCM-1111-StepRocker-Servo is designed to be as easy to use as its sibling, but with additional closed-loop stepper motor servo functionality.
The new board drives 2-phase bipolar stepper motors from 500mA to 1.0A RMS or from 1.1A to 2.8A RMS selectable by jumpers. Utilizing Trinamic’s highest performance stepper motor driver IC for external MOSFETs TMC262 and the dedicated closed-loop motion controller TMC4361, the TMCM-1111 is a cost- and energy-efficient stepper motor servo controller for stepper motors with a/b/n quadrature encoders. Ideal for liquid handling and handling sensitive goods, the S-ramp controller allows for precise and fast positioning.
“If you are looking for an energy efficient drive you are typically looking at servo drives. But, as stepper motors have a considerably higher torque than servo motors of comparable size at low speeds, they often are the solution to get rid of a costly and likewise inefficient gearbox.” Explains Trinamic’s CEO Michael Randt. “With our new stepper motor servo drives, you get the best of both worlds. The efficiency of a servo at the cost of a stepper motor.”
The TMCM-1111-StepRocker-Servo can be controlled via RS485 or USB serial interfaces (CAN retro-fit option) and is designed as open source hardware – schematics and layout are available for download. A simplified code project for the NXP Kinetis microcontroller including Trinamic’s TMCL protocol can be downloaded as well.
The credit card-sized board has a dimension of 85mm x 55mm - available for shipment in single quantities from November 2017.
