The Micronas HAL15XY Family At-A-Glance
About Nimit Pradhan

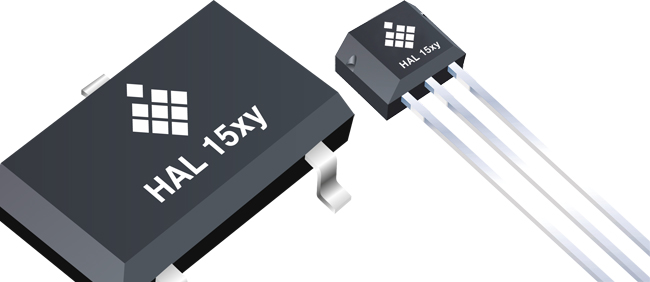

The Micronas HAL15XY is a multipurpose device to address all automotive applications. It fulfills the latest quality and functional safety standards as it is AEC-Q100 qualified and ISO 26262 compliant. The HAL15XY is the successor to the popular HAL5xy sensor which has been the standard for more than 19yrs in quality and reliability.
HAL 15xy VS HAL 5xy
Hal 15xy edges over hal5xy in the following ways
- Lower supply current
- Can operate with higher dynamic magnetic fields + lowest jitter
- Wider supply voltage range
- Smallest state off art SOT-23JEDEC package
- Additional self-protection functionality
- ASIL A ready device
- AEC-Q100 qualification
Table describes the replacement matrix of the current Hall switch family HAL 5xy and the new Hall switch family HAL 15xy.
HAL 15xy is an optimal product solution for the following cases (Applications)
Position detection, as for
- seat and pedal position
- Gear shift lever
- Seat belt presence detection
Index counting, as for
- Window lifter
Brushless DC motor commutation
Features The HAL 15xy family consists of different Hall switches produced in CMOS technology. All sensors include a temperature-compensated Hall plate with active offset compensation, a comparator, and an output stage. The family consists of 3-wire and 2-wire devices, the corresponding output stage being an open-drain output transistor and a current source respectively.
Tiny SOT23-3L JEDEC TO236-Compliant package | Current output for 2-wire applications | Wide junction temperature range from -40 °C to 170 °C | Short-circuit protected open-drain output and thermal shut down for 3-wire applications |
ISO 26262 compliant as ASIL-A ready device | Maximum sample frequency at 500 kHz, 2 µs output refresh time | Reverse-voltage protection at VSUP-pin | Ideal sensor for applications in extreme automotive and industrial environments |
Very low current consumption of typ. 1.6 mA | Operates with static and dynamic magnetic fields up to 12 kHz at lowest output jitter of typ. 0.58 µs (RMS). | Qualified according to AEC-Q100 test standard for automotive electronics industry to provide the highest quality performance | Robust EMC performances, corresponding to different standards, such as ISO 7637, ISO 16750, IEC 61967, ISO 11452 and ISO 62132 |
Operates from 2.7 V to 24 V supply voltage | Magnetic characteristics are robust regarding mechanical stress effects | Highest ESD performance of ±8 kV | Power-on self test toggles the output |
Overvoltage protection capability up to 40 V | Constant switching points over a wide supply voltage and temperature range |
|
|
Benchmark Analysis (Differentiators)
- Can be used under harshest conditions up to 170-degrees C.
- Is available in the smallest SOT23JEDEC package – almost all competitors provide only SOT23W
- Needs the lowest current consumption compared to all our competitors
- Leading in terms of min. supply voltage
- Is AEC-Q100 qualified
- First ASIL A ready switch – not provided by our competitors
- Offer switching points with highest sensitivity up to 0.5 mT
- Operates with static/dynamic fields up to 12Khz + lowest jitter of max 0.58 micro seconds (RMS)
Market Section | Automotive | Industrial | ||||
Competitors | Micronas 15xy | Competitor 1 | Competitor 2 | Competitor 3 | Competitor 4 | Competitor 5 |
Min. Supply voltage | 2.7V |
|
|
|
|
|
Max current consumption | 2mA | 2.5 mA | 4.5 mA | 4 mA | 6 mA | 6 mA |
Max Junction Temperature | 170⁰ C | 170⁰ C | 165⁰ C | 165⁰ C | 150⁰ C | 150⁰ C |
ESD Sensitivity - HBM | ±8KV | ±7KV | ±4KV | ±4KV | No Information | 8KV |
Max Magnetic field frequency | 12Khz | 10Khz | 50Khz | No Information | No Information | No Information |
Max output jitter | 0.72µS | 1µS | No Information | No Information | No Information | No Information |
Typ. Chopper frequency | 2Mhz | 350Khz | 340Khz | 800Khz | No Information | 300Khz |
Typ Sampling rate and Time | 500Khz, 2µS | No Information | No Information | 400Khz, 2.5µS | No Information | No Information |
Typ Delay Time | -15µS down to -4µS | 15µS | 6µS | No Information | No Information | No Information |
Package | SOT23 JEDEC | SOT23 JEDEC | SOT23W | SOT23W | SOT23W | SOT23W |
