  3. Bluetooth low energy-controlled mechanical switch

Nordic Semiconductor Bluetooth low energy-controlled mechanical switches enable remote operation of lighting and appliances without expensive retrofit

Symmetry Electronics in Blogs on May 22, 2017

About Symmetry Electronics

Established in 1998, Symmetry Electronics, a Division of Braemac, is a global distributor of electronic components and systems. Combining premier components and comprehensive value-added services with an expert in-house engineering team, Symmetry supports engineers in the design, development, and deployment of a broad range of connected technologies.

Exponential Technology Group Member

Acquired by Berkshire Hathaway company TTI, Inc. in 2017, Symmetry Electronics is a proud Exponential Technology Group (XTG) member. A collection of specialty semiconductor distributors and engineering design firms, XTG stands alongside industry leaders TTI Inc., Mouser Electronics, and Sager Electronics. Together, we provide a united global supply chain solution with the shared mission of simplifying engineering, offering affordable technologies, and assisting engineers in accelerating time to market. For more information about XTG, visit www.xponentialgroup.com.

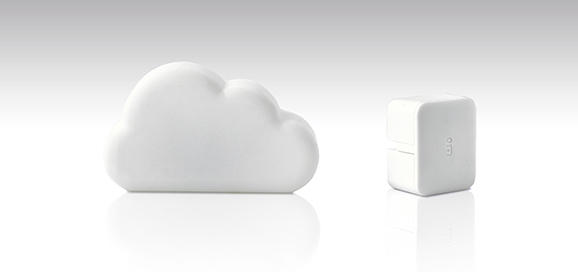

Nordic Semiconductor today announces that smart home robotics company, WonderLabs, Inc., has launched ‘SwitchBot’, a mechanical device for wirelessly controlling switches and buttons in the home, and ‘SwitchLink’, a Bluetooth® low energy “gateway” enabling remote operation of SwitchBot. SwitchBot employs Nordic’s multiple award-winning nRF51822 Bluetooth low energy System-on-Chip (SoC) while SwitchLink is powered by the nRF52832 SoC.

In operation, SwitchBot can be retrofitted with adhesive tape over any switch or button in the home―for example a light switch, or coffee machine- or PC-power button―allowing the user to wirelessly switch on/off the light or appliance via the SwitchBot app on their Bluetooth 4.0 (and later) iOS or Android smartphone or tablet. For operation away from home, SwitchLink allows remote operation of SwitchBot devices. Nordic’s nRF52832 SoC, which features -96dBm RX sensitivity, provides excellent Bluetooth low energy wireless connectivity between the SwitchBots and the SwitchLink gateway, which in turn uses a home Wi-Fi network to connect to the Internet for remote operation from the smartphone app.

When a SwitchBot device is activated from the accompanying SwitchBot app, a mechanical trigger extends out of the device, and operates the switch or button in much the same way as a finger press. The SwitchBot app allows users to not only control an unlimited number of SwitchBot devices, but also provides the capability to set passwords, timers, as well as program ‘If This Then That’ (IFTTT) scenarios, for example turning off lights if the user is detected leaving a room.

To increase SwitchBot’s wireless range, the company has developed a Bluetooth low energy-compatible mesh network software application enabling each SwitchBot to relay commands to multiple devices in the network that are out of range of the original smartphone signal. SwitchBot is powered by a single CR2 Lithium battery, providing up to two years battery life in standard operation between replacement, thanks in part to the ultra-low power characteristics of the Nordic nRF51822 SoC.

Nordic’s nRF51822 is built around a 32-bit ARM® Cortex™ M0 CPU with 256kB/128kB flash and 32kB/16kB RAM. The SoC is supplied with Nordic’s S130 SoftDevice, a Bluetooth 4.2 (Bluetooth low energy)-compliant RF software protocol (“stack”) which supports concurrent operation of Central/Peripheral/Broadcaster/Observer roles and over-the-air device firmware updates (OTA DFU).

Nordic’s nRF52832 Bluetooth low energy SoC, a member of Nordic’s sixth generation of ultra low power (ULP) wireless connectivity solutions, combines a 64MHz, 32-bit ARM® Cortex® M4F processor with a 2.4GHz multiprotocol radio (supporting Bluetooth 5, ANT™ and proprietary 2.4GHz RF software), 512kB Flash memory and 64kB RAM. The SoC is supplied with the S132 SoftDevice, a Bluetooth 4.2- compliant stack for building advanced Bluetooth low energy applications. The S132 SoftDevice supports concurrent operation of Central/Peripheral/Broadcaster/Observer roles, OTA DFU, and up to 20 connections

The nRF51822 SoC ultra low power consumption was a key reason for its selection,” says Connery Li, Co-founder & CEO, WonderLabs. “The flexibility of Nordic’s nRF51 and nRF52 Series software architecture, which separates Nordic’s SoftDevice from the application code, was also important because it made the development, compilation, test, and verification of our mesh network protocol much easier and quicker.”


Source: http://www.nordicsemi.com/eng/News/News-releases/Product-Related-News/Nordic-Semiconductor-Bluetooth-low-energy-controlled-mechanical-switches-enable-remote-operation-of-lighting-and-appliances-without-expensive-retrofit
