Micronas Hall-Effect Sensors for Industrial Applications (Part 7)

Wednesday, December 11, 2013

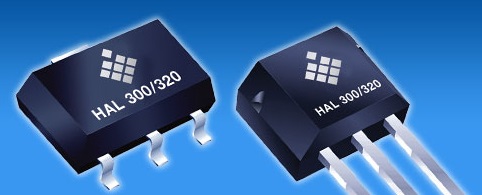

Micronas HAL320UA-A

Differential Hall-Effect Sensor ICs



Package: TO92UA leaded

Ordering Code: HAL 320UA-A

Interface: 3-Wire

Switching Behavior: Differential, High Sensitivity

Temp. Range: -40°C to +170°C

Switching Points [mT] at 25°C: BON 1.2 - BOFF -1.0



Micronas offers the world’s broadest range of Hall-effect sensors, which are increasingly being utilized in a variety of industrial applications, including factory and process automation; building, home, and office automation; medical applications; mobility and robotics controllers; agriculture and heavy machinery; garden and power tools; and household items such as washing machines, tumble dryers, induction cookers, and heating and cooling (HVAC) systems.

The HAL 320 is a Hall switch produced in CMOS technology. The sensor includes two temperature-compensated Hall plates with active offset compensation, a differential amplifier with a Schmitt trigger, and an open- drain output transistor. The active offset compensation leads to constant magnetic characteristics over supply voltage and temperature.

These differential sensors respond to spatial differences of the magnetic field. The Hall voltages at the two Hall plates, S1 and S2, are amplified with a differential amplifier. The differential signal is compared with the actual switching level of the internal Schmitt trigger. Accordingly, the output transistor is switched on or off. The differential signal can be derived via a magnet on the back side of the package generating a back-bias field at both Hall plates.

The sensors are designed for industrial applications and operate with supply voltages from 4 .5 to 24 V in the junction temperature range –40 °C up to 170 °C .

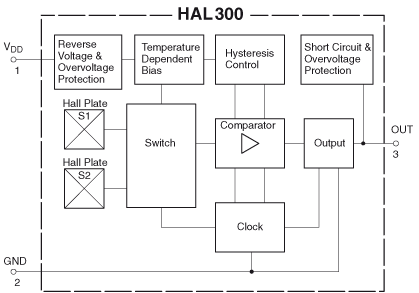

Block Diagram – System Architecture


Features

  • Distance between Hall plates: 2.05 mm
  • Operates from 4.5 V to 24 V supply voltage
  • Switching offset compensation at 62 kHz
  • Overvoltage protection
  • Reverse-voltage protection at VDD-pin
  • Short-circuit protected open-drain output by thermal shutdown
  • Operates with magnetic fields from DC to 10 kHz
  • Output turns low with magnetic south pole on branded side of package and with a higher magnetic flux density in sensitive area S1 as in S2
  • On-chip temperature compensation circuitry minimizes shifts of the magnetic parameters over temperature and supply voltage range
  • The decrease of magnetic flux density caused by rising temperature in the sensor system is compensated by a built-in negative temperature coefficient of hysteresis
  • EMC corresponding to ISO 7637





Symmetry Electronics (and its e-commerce division – SemiconductorStore.com) is an authorized Micronas distributor.
