From Digi International: What Does It Mean To Be Truly Compatible?

Symmetry Electronics Team in Blogs on May 15, 2017

About Symmetry Electronics Team

Established in 1998, Symmetry Electronics is a focused global distributor of wireless connectivity solutions, sensors, and audio-video technologies. Offering comprehensive design support and available-to-ship inventory, Symmetry is committed to helping engineers accelerate time to market, reduce costs, and offer modern solutions for their IoT designs. Acquired by the Berkshire Hathaway company TTI, Inc. in 2017, Symmetry Electronics is headquartered in Los Angeles with international offices in Mexico, Canada, and China.

True compatibility is a combination of common hardware and software interfaces that are future-proof and provide design flexibility. Digi XBee offers true compatibility with a common footprint and common APIs:

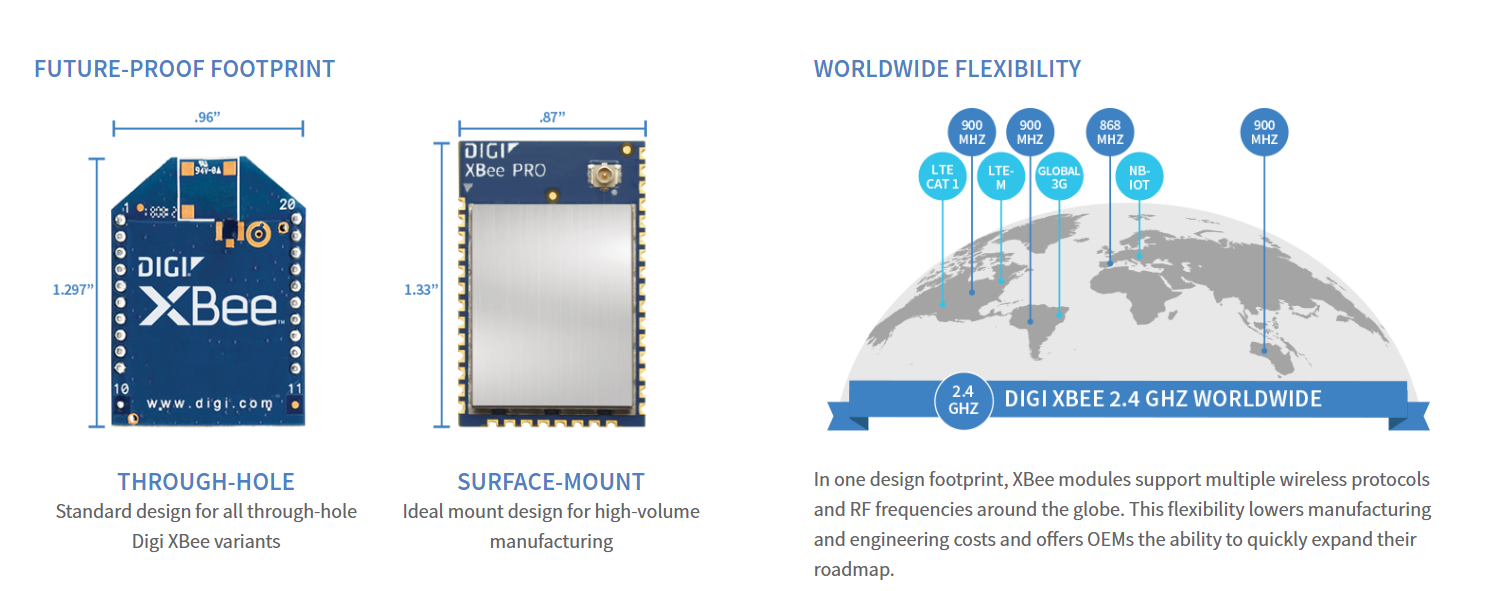

Common Footprint

In one compact design footprint, Digi XBees give our customers access to multiple wireless protocols and RF frequencies including Cellular, ZigBee®, Thread, 802.15.4 and Wi-Fi. This flexibility lowers manufacturing and engineering costs and offers OEMs the ability to quickly expand their roadmap and adapt to different frequencies and protocols for different regions of the globe.



Common Pinouts

Common footprints mean more than just a shared physical design. All Digi XBee modules use the Digi XBee pin signal layout standard. This means that all Digi XBees share the same electrical connections for maximum interchangeability.


Common API and AT Interface

Digi XBee devices can configure their local serial connections in several different ways. The XBee “operating mode” establishes the way the host device communicates with an XBee through its serial interface. These modes are standardized across all XBee devices.

Digi XBee modules support two different operating modes, which are consistent across all the different technology variants:

  • Application Transparent (“Transparent mode”)
  • Application Programming Interface (“API mode”)


Transparent Mode

Digi XBees operate in this mode by default. The device acts as a simple, ‘plug n play’ serial line replacement when it is in Transparent operating mode. The device queues all serial data it receives through the RX/DIN pin for RF transmission to its configured remote destination. When a device receives RF data from a remote device, it sends the data out through the TX/DOUT pin.

Advantages:

  • Provides a simple interface that makes it easy to get started with Digi XBee.
  • Easy for an application to support; what you send is exactly what other modules get, and vice versa.
  • Works very well for two-way communication between Digi XBee devices.


API Mode

API mode is a frame-based protocol that allows you to direct data on a packet-by-packet basis. The host device communicates UART data in packets, also known as API frames. This mode allows for structured communications between computers and microcontrollers, and the Digi XBee.
The advantages of API operating mode include:

  • It is easier to send information to multiple destinations
  • The host receives the source address for each received data frame
  • The host can receive a delivery status for each transmitted frame
  • Parameter changes can be accomplished without entering Command mode


True Compatibility

With these common hardware and software interfaces, integrating a true Digi XBee socket provides two essential advantages to an OEM design:

  1. Future-proof: Digi XBee will continue to maintain consistency as we add support for new technologies, protocols, and frequencies. This means less software and hardware work for OEM developers when they are asked to add new features into their products and services.
  2. Flexibility: It’s quick and easy to drop in different technologies, protocols, and frequencies to expand your roadmap and address new markets or regions.


With the largest selection of global protocols, standard interfaces, design flexibility, mission-critical security and a future-proof footprint, Digi XBee is the best choice for bringing a communications solution to market in record time.


Contact Symmetry Electronics at 866-506-8829, email us or start a live chat and we'll be glad to help you with your projects!
