Discover Next-Level Performance with MediaTek Genio IoT Solutions

Jari Haiston in Blogs on July 26, 2023

About Jari Haiston

Jari Haiston is part of the growing digital marketing team at Symmetry Electronics. Jari comes from a background in technical writing and event coordination. In her current role, she specializes in content creation and social media management. Jari's focus as a writer is to create interesting content that is accessible to any audience.
Find-MediaTek-Genio-Solutions-At-Symmetry-Electronics

MediaTek's Genio chipset family represents a breakthrough in semiconductor technology. These powerful and versatile chipsets are designed to deliver exceptional performance, efficiency, and connectivity across a wide range of devices. The Genio chipset family provides a solid foundation for seamless integration and superior user experiences in internet of things (IoT) development.

At the heart of MediaTek's Genio products lies formidable power and performance. Designed using advanced manufacturing processes, Genio chipsets result in high-performance CPUs and GPUs that can handle demanding tasks with ease. The combination of powerful cores, efficient architectures, and intelligent optimizations ensures smooth multitasking, artificial intelligence (AI), and lightning-fast responsiveness.

MediaTek-Genio-Products-Are-Ideal-Solutions-In-Industrial-IoT-Applications

MediaTek Genio 1200

Designed to meet the rigorous requirements of AI-driven and performance-focused IoT applications, MediaTek's Genio 1200 (MT8395) is an exceptional IoT System-on-Chip (SoC) that excels in delivering unparalleled CPU and GPU performance. With support for cutting-edge multimedia standards, the Genio 1200 offers seamless integration with multiple 4K displays. Its power efficiency remains unrivaled in the realm of 6nm-class chips.

With an integrated array of in-chip processors and multitasking prowess in the most up-to-date Open Linux environment, the Genio 1200 is an ideal solution for resource-intensive applications. It’s optimal for demanding use cases such as advanced smart home appliances, industrial IoT (IIoT), immersive 4K audio-visual experiences, and other high-performance scenarios that require robust IO capabilities, AI at the edge, and dependable embedded processing.

Additionally, the Genio 1200 series features a comprehensive evaluation kit. The MediaTek Genio 1200 EVK stands as a high-end edge-AI IoT platform, catering to a wide range of applications spanning industrial, smart home, interactive retail, and commercial sectors. It boasts exceptional performance in edge processing, multimedia capabilities, and multitasking operating systems, making it a prime choice for fanless enclosure designs. Furthermore, its power efficiency is commendable.

Platform Highlights:

  • Leading 6nm chip design
  • Octa-core CPU including 4X Super Cores: Arm Cortex-A78 and 4x Efficiency Cores: Arm Cortex-A55
  • Up to 16GB of quad-channel LPDDR4X memory
  • GPU Arm Mali-G57
  • Display/Video: Dual 4K display and HEVC codec
  • Embedded multi-core APU designed for demanding edge AI applications
  • Camera: 48MP or 16MP+16MP@30fps with internal ISP
  • Flexible high speed I/O interface to support WiFi-6 and 5G Sub-6 module
  • I/O: 1x PCIe Gen3, 1x PCIe Gen2, 2x USB3.1, 2x USB2.0 OTG/Host and 1x Giga Ethernet MAC OS: Android, Yocto, Ubuntu

Key Applications:

  • Industrial
  • Advanced smart home appliances
  • IIoT
  • Human Machine Interface (HMI)
  • 4K/multi-display audio/visual applications
  • Robotics
  • Industry 4.0
  • AI

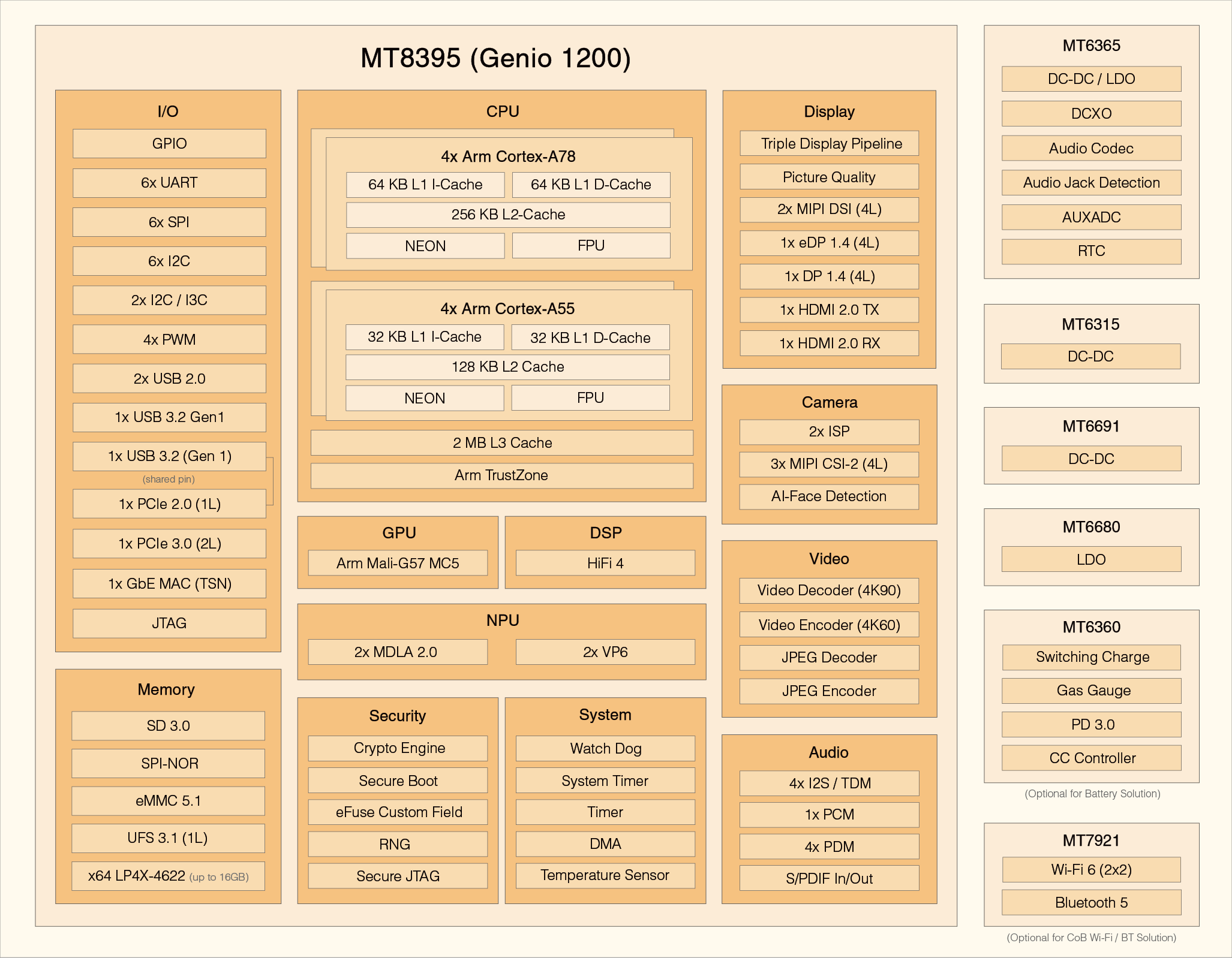

Block-Diagram-Of-MediaTek's-MT8395

MediaTek Genio 700

MediaTek's Genio 700 (MT8390) presents a powerful platform that is suitable for industrial, smart home, interactive retail, and commercial implementations. Its ultra-responsive edge processing, advanced multimedia features, diverse sensor portfolio, versatile connectivity options, and compatibility with multitasking operating systems make the Genio 700 a comprehensive solution for a wide range of use cases.

Platform Highlights:

  • 4X Arm Cortex-A53, 2.0 GHz
  • Integrated Mali-G52 GPU
  • Support FHD@60fps dual display and HEVC codec
  • vEmbedded VP6 DSP and HiFi4 DSP for Edge AI Application
  • Support 13MP@30fps camera with internal ISP and Multiple Camera
  • Support Wi-Fi 5 Dual-Band 2T2R and Bluetooth 5.1 (with MT7663)
  • Support USBx2: 2.0 OTG + 2.0 Host and 10/100 Ethernet MAC
  • Support Android, Yocto, Ubuntu OS
  • Power efficient 14nm SoC: Suitable for portable application

Key Applications:

  • Industrial
  • Edge AI applications that require voice and vision processing
  • Robotics
  • Industry 4.0
  • AI

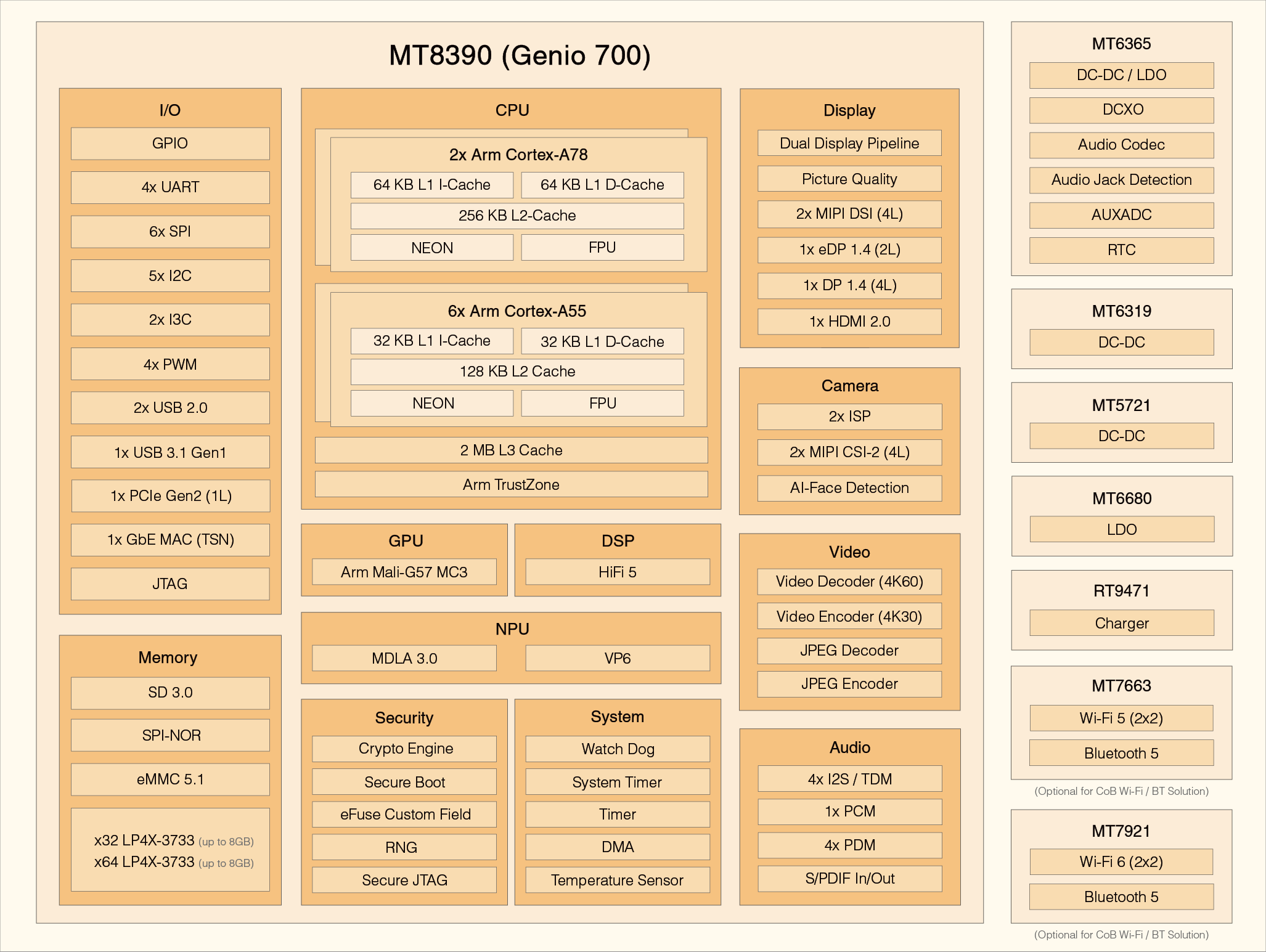

Block-Diagram-Of-MediaTek's-MT8390

MediaTek Genio 500

The MediaTek Genio 500 (MT8385) is a proficient and effective solution specifically designed for mobile, residential, or industrial IoT (IIoT) implementations that demand quick-edge processing, cutting-edge multimedia functionalities, numerous high-resolution cameras, interconnected touchscreen displays, and a multitasking operating system. Genio 500 solutions provide support for fast Wi-Fi 5 and Bluetooth Low Energy (BLE) 5.0 and an extensive set of interfaces for future connectivity and peripherals.

Platform Highlights:

  • Octa-core CPU: 4X Arm Cortex-A73, 2.0 GHz + 4X Arm Cortex-A53, 2.0 GHz
  • GPU: Arm Mali-G52, 800 MHz (OpenGL, OpenCL, Vulkan)
  • DSP: Dual-core Vision P6, 525 MHz (0.75 TOPS), Support TensorFlow Light
  • 1 x USB 3.0 / 6 x I2C, 3 x I3C / 6 x SPI / 3 x UART
  • Camera: 32MP @ 30fps
  • Display: 1920x1080, MediaTek MiraVision
  • OS: Android, Yocto, Ubuntu
  • Power efficient 12nm SoC

Key Applications:

  • Industrial
  • Mobile, home, or commercial applications
  • Robotics
  • Industry 4.0
  • AI
Block-Diagram-Of-MediaTek's-MT8365

MediaTek Genio 350

Featuring 4X Arm Cortex-A53, VP6 DSP, Mali-G52 GPU, HiFi-4 DSP, and more, the MediaTek Genio 350 (MT8365) is a popular IoT platform with a built-in APU and DSP that is optimal Edge AI applications necessitating voice and vision processing capabilities. The Genio 350 is suitable for developing compelling products targeting portable, residential, or IIoT implementations.

Platform Highlights:

  • 4X Arm Cortex-A53, 2.0 GHz
  • Integrated Mali-G52 GPU
  • Support FHD@60fps dual display and HEVC codec
  • Embedded VP6 DSP and HiFi4 DSP for Edge AI Application
  • Support 13MP@30fps camera with internal ISP and Multiple Camera
  • Support Wi-Fi 5 Dual-Band 2T2R and Bluetooth 5.1 (with MT7663)
  • Support USBx2: 2.0 OTG + 2.0 Host and 10/100 Ethernet MAC
  • Support Android, Yocto, Ubuntu OS
  • Power efficient 14nm SoC: Suitable for portable application

Key Applications:

  • Industrial
  • Edge AI applications that require voice and vision processing
  • Robotics
  • Industry 4.0
  • AI
Block-Diagram-Of-MediaTek's-MT8365

Genio 1200 Solutions Available at Symmetry Electronics

Find-MediaTek-Genio-1200-Solutions-At-Symmetry-Electronics
Part Number
Product Description
MT8395AV/ZA
Processors - Application Specialized Genio 1200 SOC[MG1]
 [MG1]Move to the top

MT6315GP/B
Power Management Specialized - PMIC Genio 1200 PMIC 4 Phase Buck Converter 4 output CPU-B Power
MT6315LP/B
Power Management Specialized - PMIC Genio 1200 PMIC 4 Phase Buck Converter 2 output GPU Power
MT6360PP/A
Battery Chargers Genio 1200 Battery Charger
MT6365IAW/B
Power Management Specialized - PMIC Genio 1200 PMIC
MT6680P/A
LDO Voltage Regulators 1200 Regulator LPDDR4 VDD1 (1.8V) 1A, 5.5V Ultra_low Dropout Linear Regulator
MT6691SVP/A
Switching Voltage Regulators Genio 1200 DC/DC LPDDR4X VDDQ (0.75V). 3A, 2.4 MHz, ACOT Step-Down DC/DC Converter with I2C
The MediaTek Genio 1200 EVK is available now at Symmetry Electronics.
Part Number
Product Description
GENIO_1200_EVK
Development Boards & Kits - ARM Genio 1200 Development Kit

Genio 700 Solutions Available at Symmetry Electronics

Find-MediaTek-Genio-700-Solutions-At-Symmetry-Electronics
Part Number
Product Description
MA5721FP/A
Switching Voltage Regulators Genio 700 VMDDR controller. 2.4MHz 1A Step-Down DC/DC Converter with I2C
MT8390AV/AZA
Processors - Application Specialized Genio 700 SOC
MT6319LP/A
Power Management Specialized - PMIC Genio 700 PMIC quad Buck
MT6680P/A
LDO Voltage Regulators Genio 1200 & Genio 700 Regulator LPDDR4 VDD1 (1.8V) 1A, 5.5V Ultra_low Dropout Linear Regulator
MT6365IBW/B
Power Management Specialized - PMIC Genio 700 PMIC
GENIO_700_EVK
Development Boards & Kits - ARM Genio 700 Development Kit

Genio 500 Solutions Available at Symmetry Electronics

Find-MediaTek-Genio-500-Solutions-At-Symmetry-Electronics
Part Number
Product Description
MT8385V/AZA
Processors - Application Specialized Genio 500 SOC[MG1]
 [MG1]Move MT8385 to first position and move the whole section to the end of the BLOG. Or remove it

MT8385V/AZA
Processors - Application Specialized Genio 500 SOC
MT6370P/A
Battery Chargers Genio 500 Batery Charger + accessory PMIC (Optional)

Genio 350 Solutions Available at Symmetry Electronics

Find-MediaTek-Genio-350-Solutions-At-Symmetry-Electronics
Part Number
Product Description
MT8365V/BZB
Processors - Application Specialized Genio 350 SOC
MT6357ARV/A
Power Management Specialized - PMIC Genio 350 PMIC
MT6691OOP/A
Switching Voltage Regulators Genio 350 DC/DC LPDDR4 VDD2/VDDQ (1.125V) or DC/DC LPDDR4X VDD2 (1.125V)
MT6691ZXP/A
Switching Voltage Regulators Genio 350 DC/DC LPDDR4X VDDQ (0.6V) => optional when using LP4X (low-voltage I/O) instead of LP4

Not sure which Genio solution is ideal for your development? Our team of Applications Engineers are experts in IoT, IIoT, and wireless technology and are uniquely positioned to assist you in determining which Genio product is the comprehensive match for your design. Contact Symmetry Electronics for more information!
