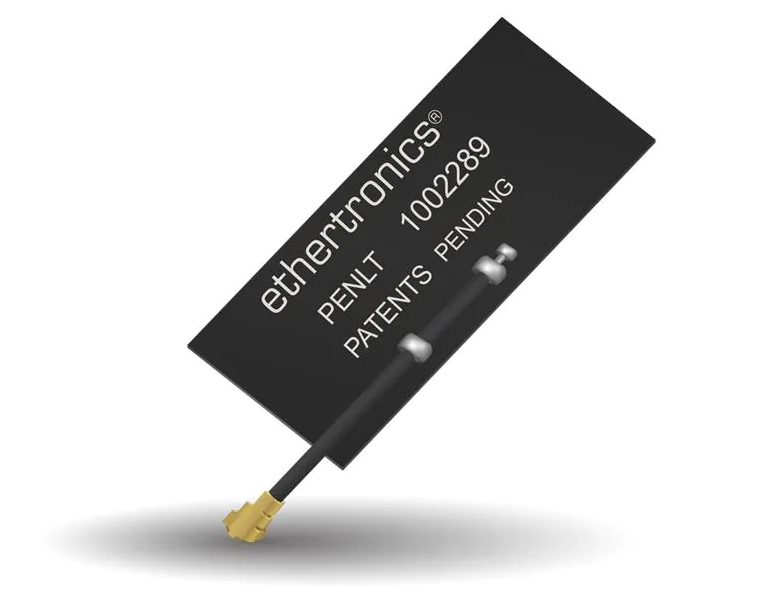

KYOCERA AVX Components 1002289F0-AA10L0200
| Manufacturer: | KYOCERA AVX Components |
|---|---|
| MFG Part #: | 1002289F0-AA10L0200 |
| Part #: | 1002289F0-AA10L0200 |
| Availability: |
75 in stock
|
| RoHS: | RoHS Compliant |
Product Information
Antennas LTE & NTN Cell Wide Band FPC Emb 698-2960MHz 50ohm 2W 53.6x25.1x0.2mm 200mm Cble
Specifications
| Antenna Connector Type | U.FL |
|---|---|
| Application | 2G, 3G, 4G, 5G, LTE Applications |
| Cable Length | 7.6 mm |
| Cable Type | 1.13 mm Coax |
| Frequency Range | 698 MHz to 960 MHz, 1.71 GHz to 2.69 GHz |
| Gain | 2.9 dBi, 4.3 dBi |
| Ground Plane Size | 75 mm x 140 mm |
| Height | 0.2 mm |
| Impedance | 50 Ohms |
| Length | 53.6 mm |
| Maximum Frequency | 2.7 GHz |
| Mechanical Style | PCB Trace |
| Minimum Frequency | 698 MHz |
| Mounting Style | Adhesive Mount |
| Number of Bands | 2 Band |
| Polarization | Linear |
| Power Rating | 2 W |
| Product | PCB Antennas |
| Protocol - Cellular, NBIoT, LTE | Cellular, NBIoT |
| Series | 1002289 |
| Standard Pack Qty | 1000 |
| Style | I-Pad Flex |
| Subcategory | Antennas |
| Termination Style | Connector |
| Type | Embedded |
| VSWR | 2.5:1 |
| Width | 25.1 mm |
My Recently Viewed Products
Purchase
Pricing
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1 | $5.63 | $5.63 |
| 10 | $3.50 | $35.00 |
